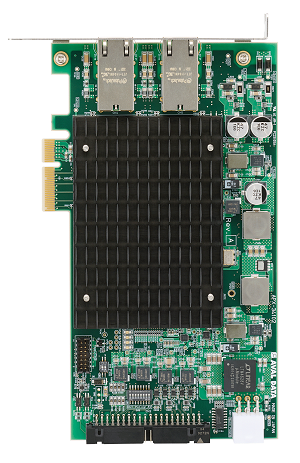

APX-34102
Dual-Channel 10Gig.E Interface Board

Model | APX-34102 |
Image Input Interface | 1GBaseT/2.5GBaseT/5GBaseT/10GBaseT RJ45 x 2ports |
Image Input Data | MONO, Bayer – 8/10/12/14/16bit RGB – 24/32/36/48bit |
Camera Power Output | Compliance: IEEE802.3AT Type1 / Type2 (with limitations) |
Onboard Memory | DDR4 SDRAM 1GB |
General-Purpose I/O | General Input: Photo-coupler:4ch , TTL:4ch General Output: Photo-coupler:2ch, Open Collector 6ch Encoder Input: A, B, Z, RSV |
Interrupt | DMA, FIFOC, Image Input Start / End, Ethernet, GPIN, etc. |
FPGA Temperature Monitoring | Available |
System Bus | PCI Express3.0(Gen3) 8.0GT/sx 4 |
Power Supply | DC+12V +5/-8%, 6.25A (MAX) Supplied via 6-pin PCI Express external power connector |
Operating Environment | Temperature: 0°C ~ 50°C Humidity: 35 ~ 80% (non-condensing) |
Dimensions | 187.65mm × 106.65mm Panel Width: 20mm (Excluding the connector part) |
Supported OS | Windows10 64bit/Windows11 |
Software (Optional) | Development Kit: SDK-AcapLib2 (Model No.: AZP-ACAP-02) |
Notes)
– The specifications and appearance stated are subject to change without notice.
– Power consumption does not include inrush current.
– In order to use the product correctly, be sure to read the instruction manual before using the product. Also, use the product under the conditions applicable to your product warranty.
