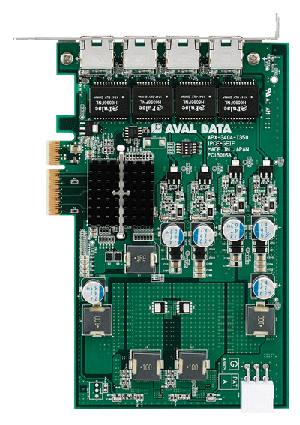

APX-3404-I350
Gig.E Interface 4-Channel Compatible Board
| Model | APX-3404-I350 |
| Ethernet Interface | ◎1000BaseT, 100BaseTX, 10BaseT ◎4ports Ethernet Controller : NHI350AM4 ◎Power Over Ethernet(PoE) IEEE802.3af |
| System Bus | PCI Express2.0(Gen2) 5.0GT/sx 4 |
| Power Consumption | +3.3V 2.4A CN6(+12V)：7A |
| Operating Environment | Temperature: 0℃ ~ 50℃ Humidity: 30 ~ 85% (non-condensing) |
| Environmental Compliance | RoHS, A30CS |
| Deimensions | 167.65mm × 111.15mm, panel width 20mm (excluding a connector part) |
| Weight | 176g |
| Support OS | Windows 7/8.1/10 (Compatible with both 32-bit and 64-bit versions) |
| Software | Capture Related: Intel driver + camera/software vendor driver |
Notes)
– The specifications and appearance stated are subject to change without notice.
– Power consumption does not include inrush current.
– In order to use the product correctly, be sure to read the instruction manual before using the product. Also, use the product under the conditions applicable to your product warranty.비고)
