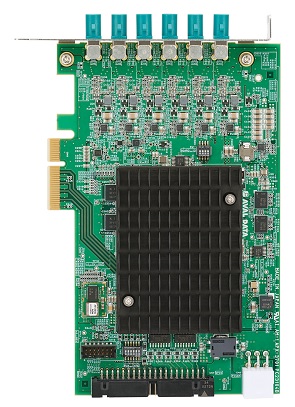

APX-3701
Sony’s GVIF2 Interface Frame Grabber

  • The industry’s first industrial frame grabber equipped with Sony’s high-speed transmission interface, GVIF2

  • GVIF2 technology, proven in automotive electronic systems, is now available for industrial applications

  • Enables stable data transmission even in harsh industrial environments

  • Minimizes electromagnetic interference (EMI), allowing precise signal processing without device interference

  • Provides an optimal solution for industrial inspection and control systems through highly reliable data acquisition

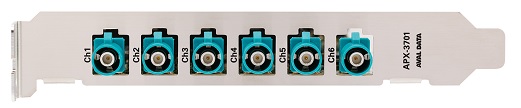

  • Up to 6 camera connectable

Model name APX-3701
System Bus PCI Express Gen 3 ×4
Image Input I/F GVIF2
Data Rate 2.4/4.8Gbps　※Actual effective rate may be limited
Number of Channels 6ch
Power Over Coax Specification +16V (4W/ch) output (Total 24W output, 16V/1.5A)
Camera Power Output External supply connector
GPIO for Image MIL40-pin connector
FPGA Temperature Monitoring Support
Power Supply DC+12V±8%
Current Consumption 1.1A (excluding Power over Coax supply)
Operating Environment Temperature : 0~50℃
Humidity : 35~85%RH(non-condensing)
Board Dimensions Length 167.65mm×Width 111.15mm
Panel Width 21.59mm(excluding protrusions)
Environmental Compliance RoHS10
Supported OS Windows10/Windows11 64bit
Software SDK-AcapLib2(Model:AZP-ACAP-02)

Notes
– Specifications and appearance are subject to change without notice.
– Power specifications do not include inrush current.
– To ensure proper use, please read the instruction manual before use and operate the product within the warranty conditions.

OMRON SENTECH GVIF Camera Information : Click Here
