Frame Grabber

Camera Link

APX-3302
CL Base x 2Ch compatible Space-saving Low Profile Frame Grabber

  • Can connect up to 2 Camera Link Base Configuration cameras
  • Compatible with PoCL
  • Compatible with PCI-Express 2.0 x 4 (Gen 2)
  • Low Profile size that can be installed on a typical PC
  • 2ch Synchronous / Asynchronous image capture
  • Large capacity onboard memory of 256 M Byte
  • The output for strobe timing corresponds to each camera
  • General I/O ports for external triggers, encoder, and etc
Model APX-3302
Image input I / F CameraLink BaseConfiguration 2ch
Two SDR 26 pin connectors installed
Sampling clock 85 MHz (MAX)
Image data RGB color: 24 bits
Monochrome: 8 (1/2/3 Tap) / 10/12 bit (1/2 Tap)
PoCL Correspondence
MEGA-FIFO DDR2-SDRAM 256MB
Image processing Tap Sort + Line Inversion
Sync output Camera control signals: CC1 to CC4
General purpose output: 2 ch asynchronous, TTL /
open collector (Available with the strobe timing output)
Sync input External trigger: TTL / open collector / differential signal RS-422
Encoder: differential signal RS-422 (line driver), A / B / Z phase,
1 MHz (MAX)
General purpose input: TTL / open collector
Event Image input start, DMA end, GPIN etc.
System bus PCI Express 2.0 x4 (Gen2) 2.5GT / S
Power + 12V
Environment Temperature : 0 ℃ to 50 ℃, humidity: 35% to 85% (no condensation)
Dimension LowProfile
LowProfile 167.65 mm × 68.9 mm Panel width 20 mm (not including Projections)
Supported OS Windows 10 / 7 (32bit / 64bit), Linux
Software (option) SDK-AcapLib2
Notes)
– The specifications and appearance stated are subject to change without notice.
– Power consumption does not include inrush current.
– In order to use the product correctly, be sure to read the instruction manual before using the product. Also, use the product under the conditions applicable to your product warranty

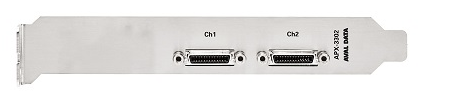

Standard PCI panel product APX-3302-CBL
A standard PCI panel product (picture) APX-3302-CBL with 15 pin I / O connectors is also available.
APX-3302-CBL Panel
